"SMT Components Multilayer Dark Green Solder Mask Prototype PCB Assembly" refers to a specific type of prototype printed circuit board (PCB) assembly with several characteristics. Let's break down each component:
SMT Components: SMT stands for Surface Mount Technology. It refers to electronic components that are designed to be mounted directly onto the surface of the PCB using solder paste and reflow soldering techniques. SMT components are smaller and more compact compared to through-hole components, allowing for higher component density on the PCB.
Multilayer: This indicates that the PCB has multiple layers of conductive material separated by insulating layers. Multilayer PCBs enable complex circuit designs with improved signal integrity, reduced size, and increased functionality.
Dark Green Solder Mask: The solder mask is a protective layer applied to the PCB to insulate the copper traces and prevent solder bridges or short circuits during the assembly process. In this case, the solder mask is dark green in color, which is a common choice for PCB aesthetics. The green color helps with component identification and provides a visually appealing appearance.
Prototype PCB Assembly: This refers to the production of a small batch or a single unit of PCBs for testing, validation, or initial product development. Prototype PCB assembly involves the fabrication of the PCB, including the solder mask application and the assembly of SMT components onto the board.
Prototype assembly typically follows the same processes as mass production, including solder paste application, component placement using pick-and-place machines, reflow soldering, and inspection. However, it is important to note that prototype assembly may have a shorter lead time and may be more flexible in terms of design changes compared to full-scale mass production.
In summary, an "SMT Components Multilayer Dark Green Solder Mask Prototype PCB Assembly" refers to a prototype PCB with multiple layers, a dark green solder mask for insulation and aesthetics, and the assembly of surface mount technology (SMT) components onto the board. This type of PCB assembly is commonly used for initial product testing, validation, and development before moving on to full-scale production.

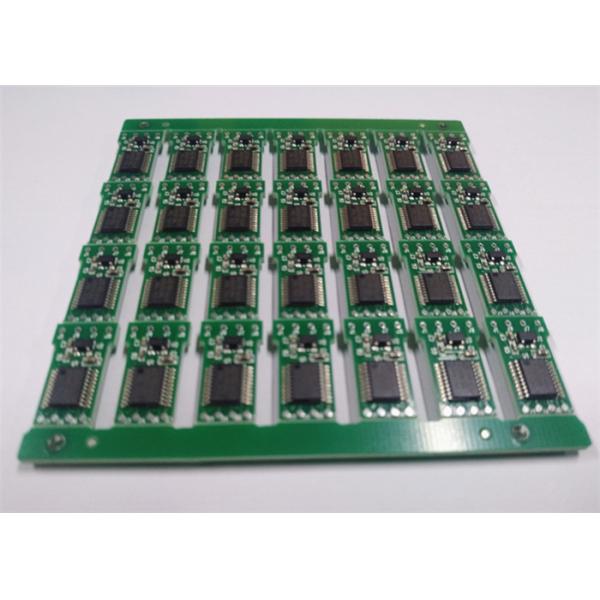

1. Pictures for SMT Components Multilayer Dark Green Soldmask Prototype pcb assembly
2. Features
1. One Stop OEM Service: Made in Shenzhen of China
2. Manufactured by Gerber File and Bom LIst Offered by Customers
3. SMT, DIP Technology Support
4. FR4 Material Meet 94v0 Standard
5. UL,CE,ROHS Compliant
6. Standard Lead Time: 4-5days for 2L;5-7 for 4L. Expedited Service is available
3. Specifications
| Material | ISOLA |
| Layer | 6 |
| Finish Board thickness | 1.8mm+/-10% |
| Finishe Copper Thickness | 1/1/1/1/1/1 OZ |
| Soldmask | Dark Green |
| Silkscreen | White |
| E-test | 100% |
| Surface Treatment | ENIG 1U |
